Brake Pipe Routing-Jubilee

Colin Goodey
Colin@jubilee-man
2,671 Posts
Site Founder
UK Jubilee (1975)
#1 · 8th April 2011, 10:21 pm

Hi Sheltie...I'm really sorry but have managed to delete the whole thread instead of just my entry:@:@

I'll get some pics of my engine bay and send them to you along with a description.

Click for thumbs down.0Click for thumbs up.0
If it ain't broken don't try to fix it as if you do it will definitely break
sheltie
sheltie@sheltie
12 Posts
Member

#2 · 9th April 2011, 11:00 am

:D::D

That would be very nice, thankyou, I'm esxpcially uncertain of the pipe run from inner wing to rear axle.

Click for thumbs down.0Click for thumbs up.0
Colin Goodey
Colin@jubilee-man
2,671 PostsTopic Author
Site Founder
UK Jubilee (1975)
#3 · 17th April 2011, 8:16 pm

Hi Larry...Pics are on there way to you

Click for thumbs down.0Click for thumbs up.0
If it ain't broken don't try to fix it as if you do it will definitely break
northener51
northener51@northener51
208 Posts
Member

#4 · 19th April 2011, 2:53 pm

Hopefully they'll help a little. Would have replied sooner but I haven't got round to sorting which ones you would need.

If you need more let me know, cause I'll be under the hood over the next few weeks servicing/preparing for the Summer. Any newer images will be better quality due to a better camera.

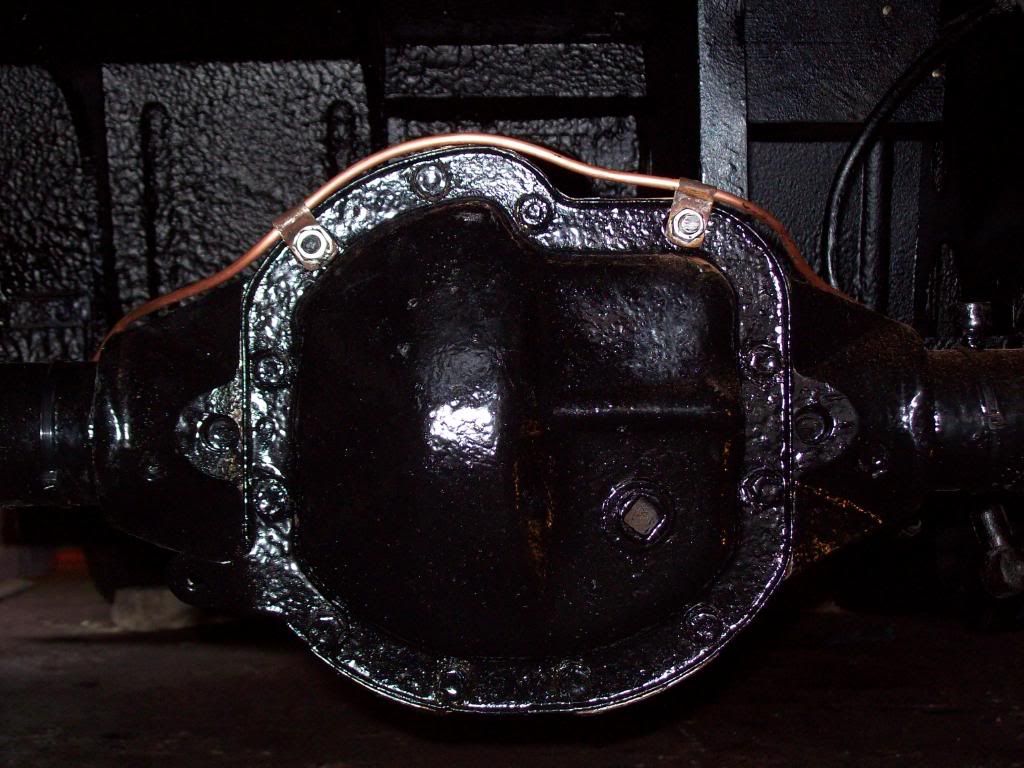

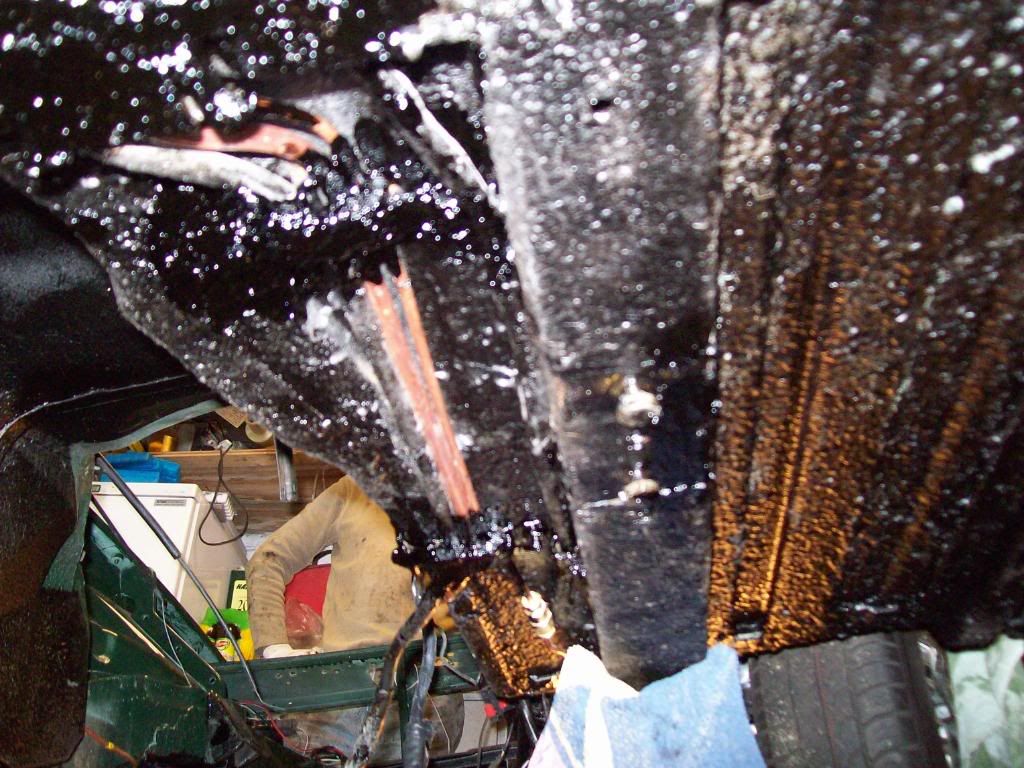

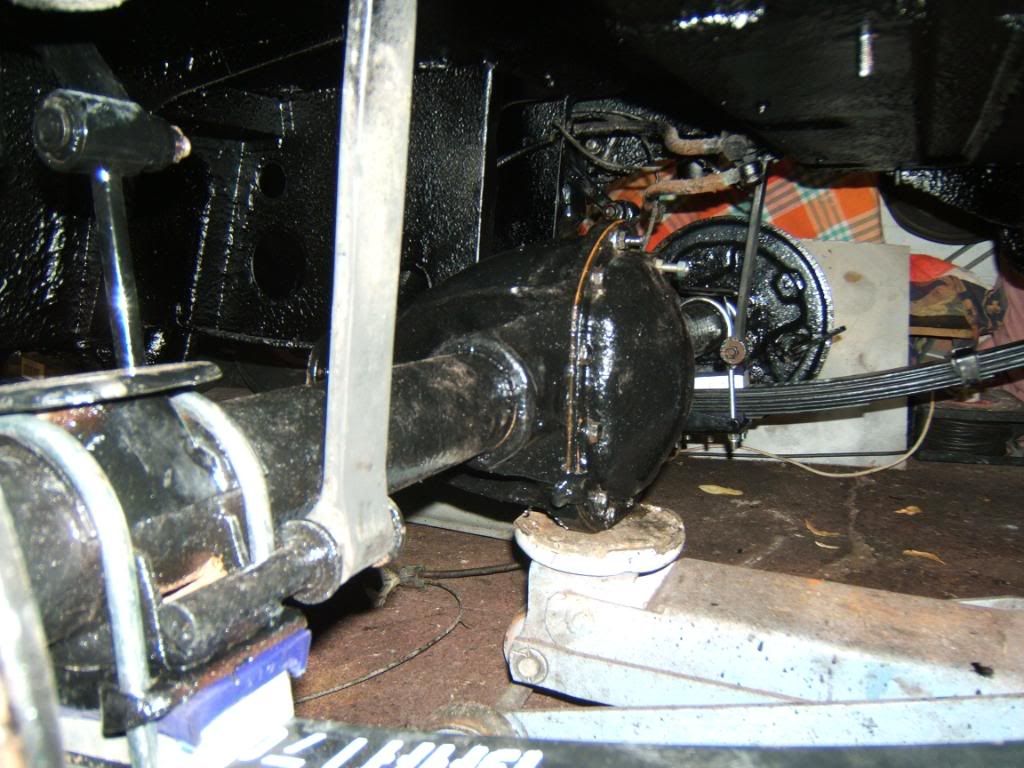

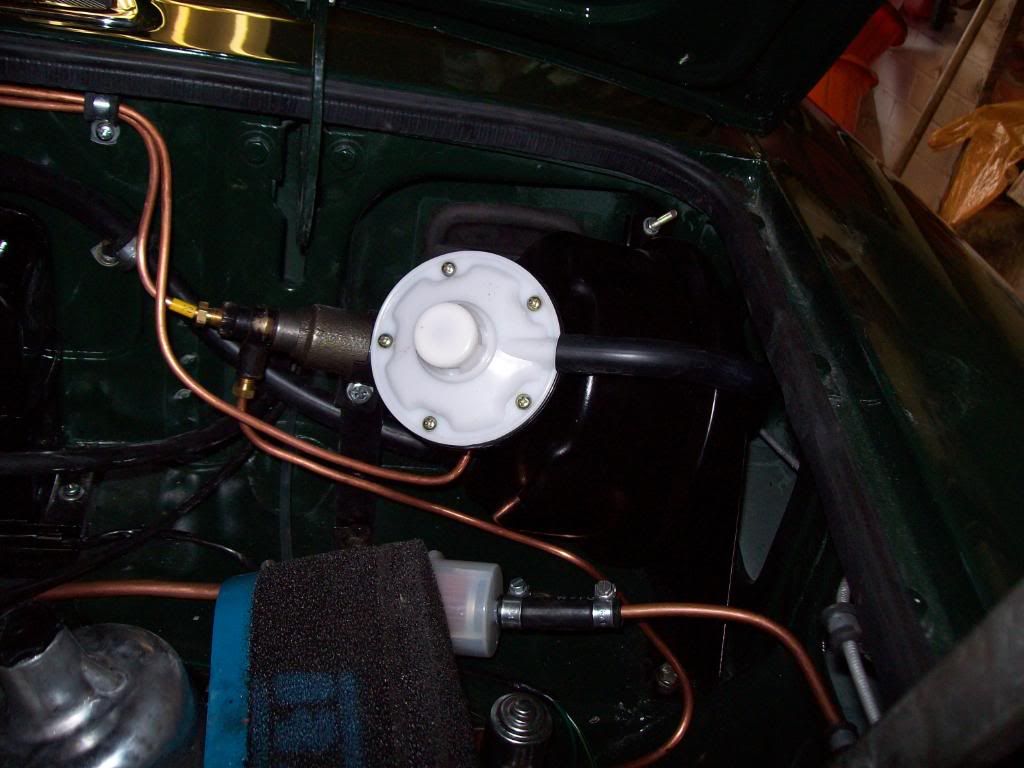

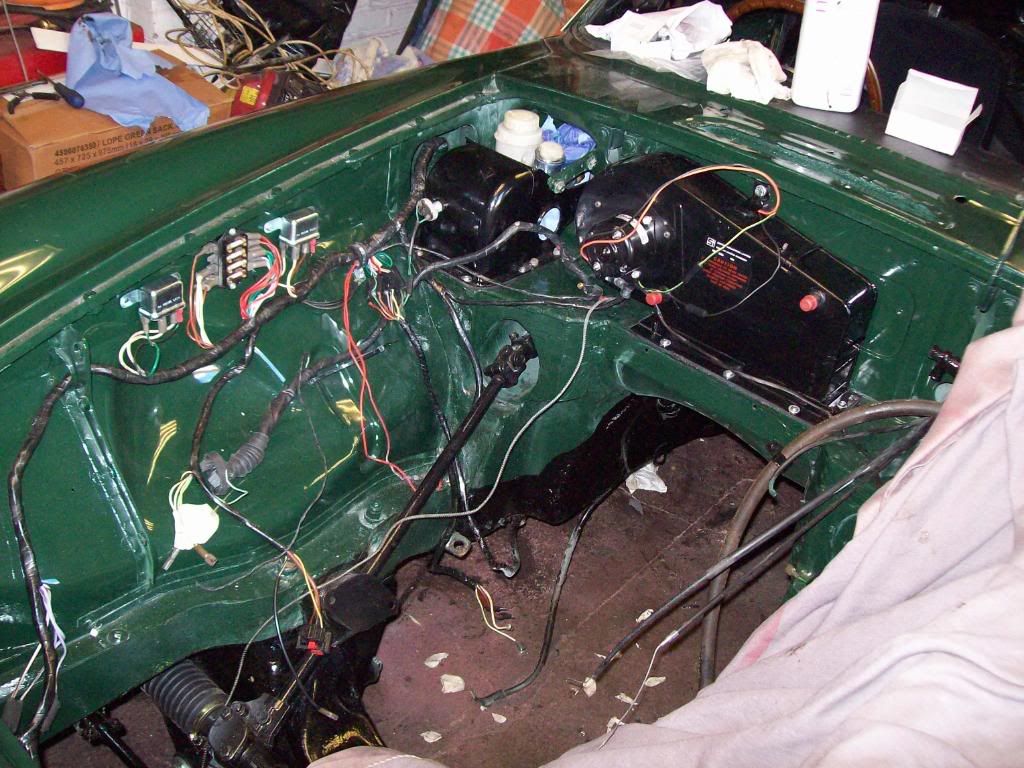

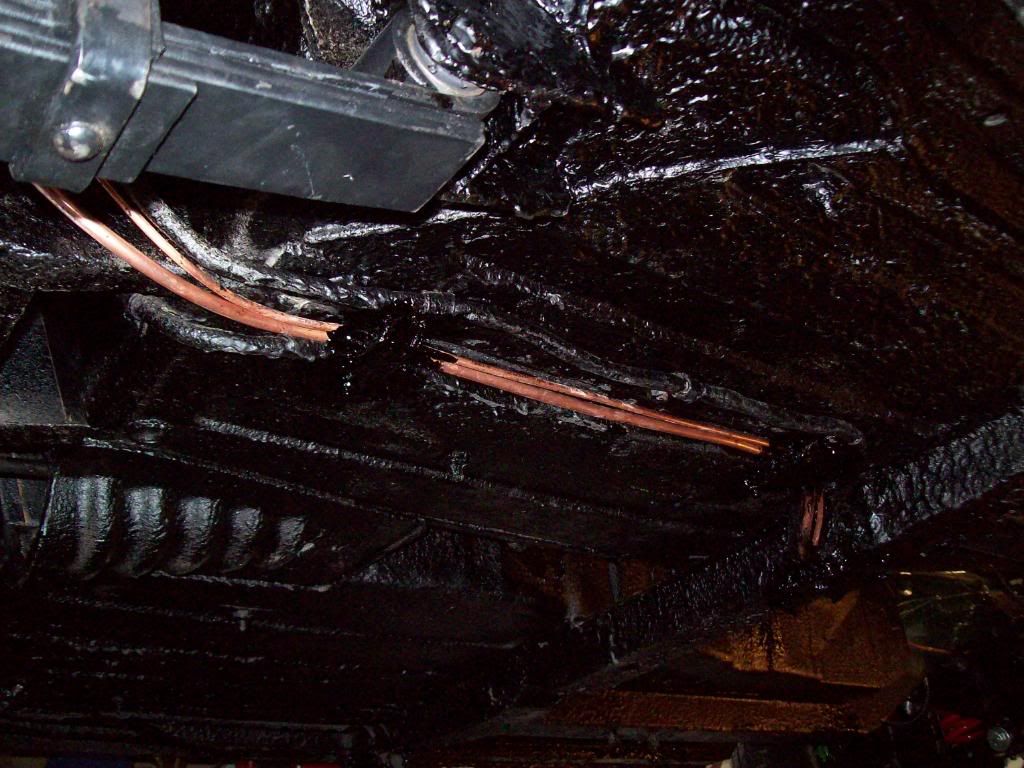

Hopefully the above images give you a good idea. As a guide, the thicker copper pipe (underneath the car) is the fuel line, the thinner is the actual brake line

Pete
